-VAC Portable Vacuum Pump |
 |
|
|
|
| |

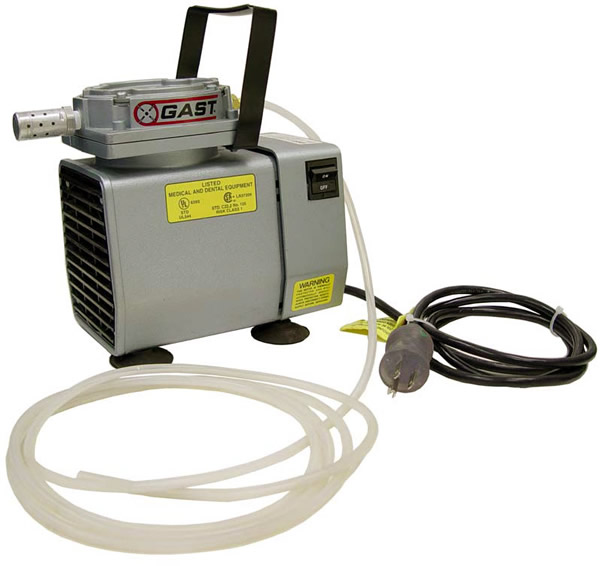

The S-VAC offered by Signatone is manufactured by GAST. The S-VAC is a quiet, oilless, compact and portable vacuum pump.
When ordered with a probe station, the S-VAC includes 10 feet of vacuum tubing, a muffler, a handle, rubber feet and power cord.
|
|
|
| |
|
| |
Specifications
- Power requirement: 115V @ 60 Hz / 4.2 A
Also available with: 220V @ 50 Hz / 1 A 1/8 horse power / 0,25 kW
- cfm: 1.55 @ 50Hz / 1.90 @ 60Hz
- Maximum Pressure: psi = 60 / bar = 4,2
- Maximum Vacuum: 25.5 “Hg / 150 mbar
Signatone Model numbers
- S-VAC…115V / 60Hz / 4.2 Amps
- S-VAC-220…220V / 50Hz / 1 Amps
- Boxed dimension: 9”H x 9”W x 10”L
- Shipping Weight: 17 lbs
|
|
|
 |
|
|
 |
|
 |
|
